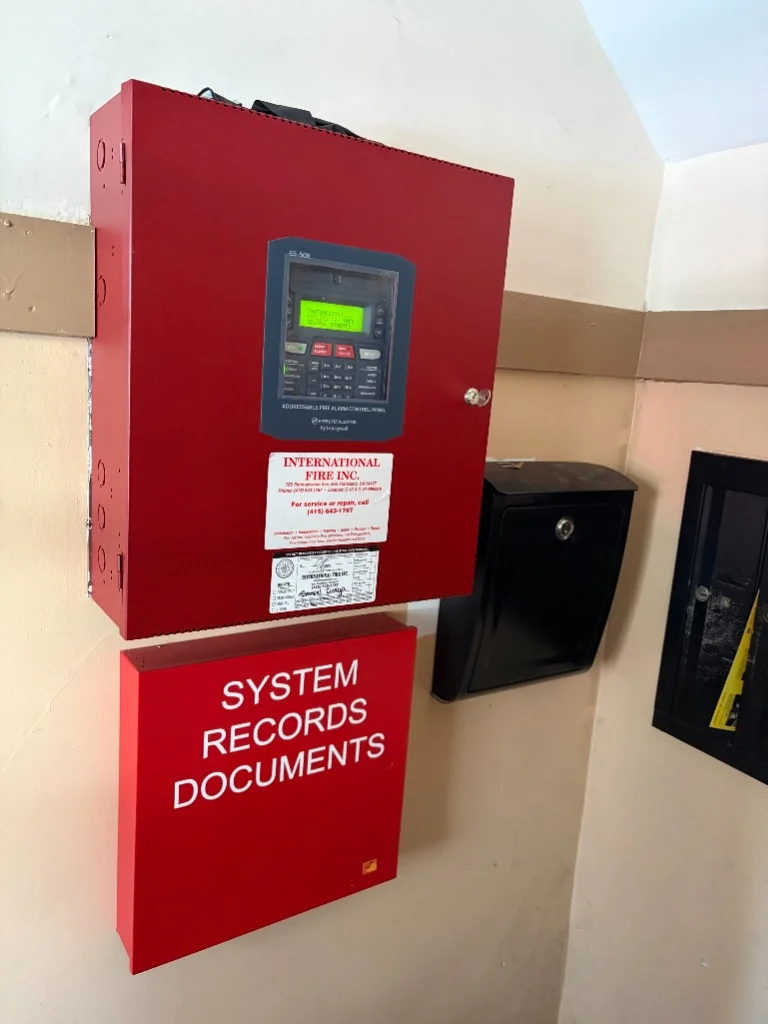

Fire-Lite ES-50X addressable fire alarm control panel and heavy-duty System Records Document box installed in Fillmore District, San Francisco by International Fire Inc.
International Fire Inc. recently engineered, installed, and certified a full commercial fire alarm system upgrade for an existing multi-family residential building located in the historic Fillmore District of San Francisco, California.
Multi-unit residential structures in San Francisco are subject to strict municipal life-safety codes enforced by the San Francisco Fire Department (SFFD). Under San Francisco Fire Code Section 1103.7.6.1 and SFFD Administrative Bulletin 3.08, existing R-2 residential occupancies—such as apartment buildings and condominiums containing three or more units—with existing fire alarm systems must retrofit sleeping area notification appliances to satisfy modern decibel and 520 Hz low-frequency audible standards.
To bring the building into 100% compliance, our licensed fire protection team furnished and installed a modern Fire-Lite ES-50X addressable fire alarm control panel, installed 520 Hz low-frequency sleeping area sounders across residential apartments, mounted a wall-secured red System Records Document cabinet, and attached official California State Fire Marshal inspection tags.
Property managers and building owners across the Fillmore District and surrounding San Francisco neighborhoods frequently receive compliance notices from the SFFD Bureau of Fire Prevention regarding sleeping room audible notification requirements.
Standard fire alarm horns operating at traditional high frequencies (around 3,000 Hz) often fail to awaken individuals who are sleeping, hard of hearing, or under the influence of sleep aids. Scientific studies adopted by NFPA 72 demonstrated that a 520 Hz low-frequency square wave sounder is up to six times more effective at waking sleeping occupants.
Consequently, San Francisco Fire Code Section 1103.7.6.1 and SFFD AB 3.08 explicitly mandate that when fire alarm systems in R-2 occupancies undergo modification or replacement, all sleeping area notification appliances must produce a 520 Hz low-frequency tone producing at least 75 dBA at pillow level.
Prior to starting work at the Fillmore District residential building, International Fire Inc. conducted a physical audit of the existing building infrastructure. Our licensed C-16 and C-10 fire protection technicians discovered several key areas requiring modernization:
To address all deficiencies and provide long-term life safety protection, International Fire Inc. executed a comprehensive fire alarm installation plan tailored specifically for multi-family residential structures:
We mounted and wired a state-of-the-art Fire-Lite ES-50X addressable fire alarm control panel by Honeywell. This unit supports up to 50 addressable points, providing precise location reporting for smoke detectors, heat sensors, manual pull stations, and waterflow switches.
In full compliance with SF Fire Code 1103.7.6.1 and SFFD AB 3.08, we installed System Sensor 520 Hz low-frequency sounder bases and notification appliances in every apartment sleeping room. We measured sound pressure levels at pillow height to confirm the mandatory minimum 75 dBA output level.
As shown in our project photography, we installed a heavy-duty, surface-mounted red System Records Document cabinet directly beneath the control panel. This cabinet securely houses all SFFD permit plans, manufacturer manuals, Title 19 inspection records, and technician sign-off logs.
Our technicians thoroughly tested all initiating devices, notification circuits, trouble signals, and battery backup systems. Upon verifying flawless operation, we attached official California State Fire Marshal annual certification tags and connected the panel to digital central station monitoring.
Upon completion of the project, the Fillmore District residential building received full code compliance certification from International Fire Inc.:
Managing multi-unit residential property in San Francisco requires working with a licensed contractor who intimately understands local fire codes and SFFD Administrative Bulletins.
Whether your building is located in the Fillmore District, Nob Hill, SOMA, Pacific Heights, or the Mission District, International Fire Inc. delivers complete turnkey fire alarm engineering, annual testing, sprinkler integration, and fire extinguisher certification.
Explore our comprehensive San Francisco Compliance Center to learn more about municipal fire department requirements for multi-family residential and commercial buildings.
San Francisco Fire Code Section 1103.7.6.1 mandates that existing R-2 multi-family residential buildings with fire alarm systems upgrade their audible notification appliances in sleeping areas to meet specific decibel and 520 Hz low-frequency standards.
SFFD Administrative Bulletin 3.08 provides local enforcement guidelines requiring property owners of R-2 multi-unit residential buildings to retrofit sleeping area alarms with 520 Hz low-frequency sounders during fire alarm system upgrades or code compliance notices.
Scientific research proves that 520 Hz low-frequency square wave tones wake up sleeping adults, children, and hearing-impaired occupants significantly faster than high-pitch 3 kHz horns.
R-2 occupancies include multi-family apartment buildings, condominiums, residential hotels, and boarding houses containing three or more permanent residential dwelling units.
San Francisco Fire Department (SFFD) and California Title 19 regulations require mandatory annual fire alarm testing, inspection, central station monitoring verification, and State Fire Marshal tagging.
